CV07-H74 Thin Wafer Single Disc Check Valve PN16/25/40

Technical Specification：
size:DN50-DN600;2’’-40’’
Medium:water
Standard:EN12334/BS5153/MSS SP-71/AWWA C508
Pressure:CLASS 125-300/PN10-25/200-300PSI
Material:WCB,SS
Type:wafer,swing

Inquire Now Add To Cart

Product Details

Item No.	Part Name	Specification
1	Body	WCB/CF8/CF8M
2	Disc	WCB/CF8/CF8M
3	Bolt	WCB/CF8/CF8M
4	O-Ring	NBR/EPDM/VITON
5	Baffle	WCB/CF8/CF8M

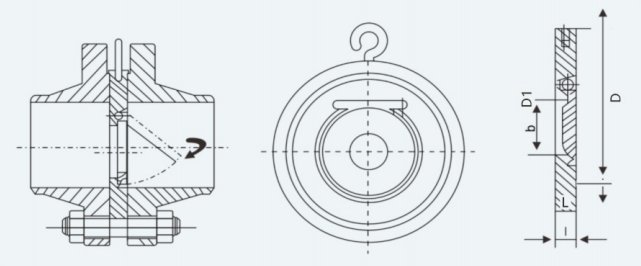

Size	L		D1	D
Size	PN10/16	PN25/40	D1	PN10	PN16	PN25	PN40	Class 150
DN40	16	19	22	92	92	92	92	90
DN50	17	19	25	107	107	107	107	103
DN65	17	19	38	127	127	127	127	121
DN80	18	19	46	142	142	142	142	134
DN100	18	19	71	162	162	168	168	172
DN125	19	19	95	192	192	194	194	194
DN150	19	22	114	218	218	264	264	219
DN200	29	29	140	273	273	284	290	276
DN250	29	38	188	329	329	340	350	337
DN300	38	51	216	378	384	400	415	407
DN350	44	51	263	438	444	457	472	448
DN400	51	51	305	488	495	514	544	512
DN450	60	76	356	538	555	564	570	547
DN500	64	83	406	593	616	622	628	604
DN600	70	90	482	694	732	729	745	715
DN700	80	90	562	804	804	831
DN800	90	100	664	910	910	942
DN900	90	100	738	1010	1010	1038
DN1000	100	120	846	1124	1124	1150
