DIN3352 F5/EN1171 PN10/PN16 Non-Rising Stem Resilient Seat Gate Valve-766

DIN3352 F5/EN1171 PN10/PN16 Non-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge
Brass Wedge Nut

Surface Treatment: RAL 5017 FBE coated inside and outside with thickness no less than 250microns
Working pressure 16 Bar
working temperature from -10 to +80 ºC

Inquire Now Add To Cart
share:
Product Details

Technical Specification：
Valve design and manufacture:EN 1171、DIN3352、EN 1074-1 and 2
Face to face: EN 558-1 Series 15 、 DIN3202 F5 Standard
Flange Connection: EN 1092-2、ISO 7005-2
Hydraulic test according to EN 12266、ISO5208
Shell test pressure: 24 bar
Seat test Pressure: 17.6 bar

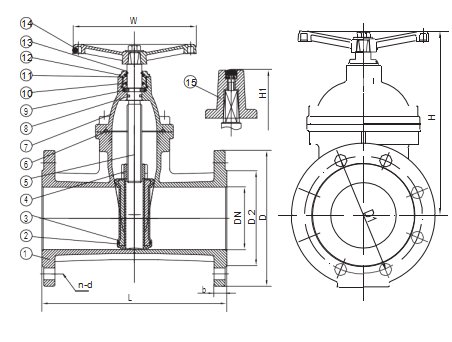

Item No.Part NameSpecification
1BodyDuctile Iron GGG50
2WedgeDuctile Iron GGG50
3Wedge CoatingNBR /EPDM EN 681-1
4Wedge NutCopper Alloy
5StemStainless Steel X20 Cr13
6Bonnet GasketNBR /EPDM EN 681-1
7BonnetDuctile Iron GGG50
8O Ring Back SealingEPDM/NBR
9Stem CollarStainless Steel / Brass
10O-RingEPDM/NBR
11O-RingEPDM/NBR
12Stuffing NutCopper Alloy
13Dust GuardEPDM/NBR
14HandWheelDuctile Iron GGG50
15Stem CapDuctile Iron GGG50

SizeLDbEN 1092-2 PN10EN 1092-2 PN16HH1WW.T(kg )
D1D2n-dD1D2n-d
DN4024015019110844*19110844*1918022516010.5
DN5025016519125994*19125994*1919524016012
DN65270185191451184*191451184*1922526518015.5
DN80280200191601328*191601328*1925529520019.5
DN100300220191801568*191801568*1928532520025.5
DN125325250192101848*192101848*1934538022034
DN150350285192402118*232402118*2338542025045
DN200400340202952668*2329526612*2346550028069
DN2504504002235031912*2335531912*28565590320106
DN30050045524.540037012*2341037012*28645670350148
