DIN DI Thread End Resilient Seat Gate Valve Manufacture

Non-rising Resilient Seat Socket end Gate Valve for DI Pipe

Features：
Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

Non-rising Resilient Seat Socket end Gate Valve for PE Pipe

Features：
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

PVC Socket Ends Non-rising Resilient Seat Gate Valve

Features：
Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

AWWA C509/C515 250PSI Rising Stem Resilient Seat Gate Valve

Features：
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

AWWA C509/C515 250PSI NON-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

BS5163/EN1171 PN10/16 Rising Stem Resilient Seat Gate Valve

Features：
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 250 Micron thick
Working pressure :16Bar
working temperature from -10 to +80 ºC

BS5163&BS664/665 Non-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge
Brass Wedge Nut
Surface Treatment: RAL 5017 FBE coated inside and outside with thickness no less than 250microns
Working pressure 16 Bar
working temperature from -10 to +80 ºC

DIN3352 F4/F5 DN350-DN1600 Non-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge
Brass Wedge Nut

Surface Treatment: RAL 5017 FBE coated inside and outside with thickness no less than 250microns
Working pressure 16 Bar
working temperature from -10 to +80 ºC

DIN3352 F5/EN1171 PN10/PN16 Non-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge
Brass Wedge Nut

Surface Treatment: RAL 5017 FBE coated inside and outside with thickness no less than 250microns
Working pressure 16 Bar
working temperature from -10 to +80 ºC

DIN3352 F4/EN1171 PN10/PN16 Non-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge
Brass Wedge Nut
Surface Treatment: RAL 5017 FBE coated inside and outside with thickness no less than 250microns
Working pressure 16 Bar
working temperature from -10 to +80 ºC

RG04-F4-NRS Gland Type DIN3352 / EN 1171 Resilient Seated Gate Valve Gland Type

Technical Specification:

Size: DN50-DN600

Pressure: EN 1171

Valve design according to EN 1171、DIN3352、EN 1074-1 and 2

Face to face dimensions according to EN 558-1 Series 14/15、DIN3202 F4/F5

Standard flange drilling to EN 1092-2、ISO 7005-2

Hydraulic test according to EN 12266、ISO5208

RG05-F4-NRS DIN3352 / EN 1171 Resilient Seated Gate Valve

Technical Specification:

Size: DN50-DN300

Pressure: EN 1171

Valve design according to EN 1171、DIN3352、EN 1074-1 and 2

Face to face dimensions according to EN 558-1 Series 14/15、 DIN3202 F4/F5

Standard flange drilling to EN 1092-2、ISO 7005-2

Hydraulic test according to EN 12266、ISO5208

RG11-PE pipe Socket Ends PE Socket Ends Non-rising Resilient Seat Gate Valve

Technical Specification:

Size: DN50-DN300

Pressure:PE Socket

Valve design according to DIN 3352 / SABS 664

Face to face dimensions according to DIN 3202 F5/ SABS 664

Socket Ends dimensions comply ISO 4422 、 ISO 4422.2

Hydraulic test according to ISO5208

RG12-Socket End for DI pipe Socket Ends Non-rising Resilient Seat Gate Valve for DI Pipe

Technical Specification：

Size: DN50-DN300

Pressure:Socket

Valve design according to DIN 3352 / SABS 664

Face to face dimensions according to DIN 3202 F5/ SABS 664

Socket Ends dimensions comply ISO 4422 、 ISO 4422.2

Hydraulic test according to ISO5208

RG 13-Thread End DIN3352 Thread End Resilient Seat Gate Valve

Technical Specification:

Size: DN15-DN50

Pressure:Thread

Design:DIN3352

Thread End Connection: NPT,BSPT

Hydraulic test: EN12266；ISO 5208

Seat Test:17.6bar

Shell Test:24bar

RG 14-Thread End Angle type DIN3352 Thread End Resilient Seat Gate Valve

Technical Specification:

Size: DN1”-DN2”

Pressure:Thread

Design:DIN3352

Thread End Connection: NPT,BSPT

Hydraulic test: EN12266；ISO 5208

Seat Test:17.6bar

Shell Test:24bar

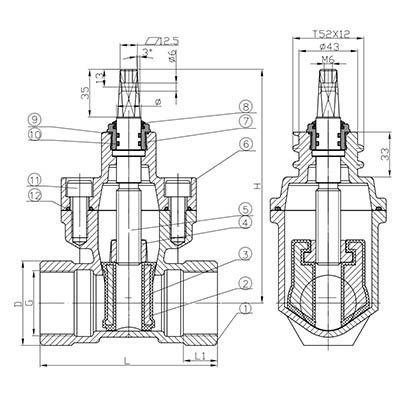

Item No.	Part Name	Specification
1	Body	Ductile Iron GGG50
2	Wedge	EPDM/NBR
3	Bracket	Ductile Iron GGG50
4	Stem Nut	Brass
5	Stem	SS X20Cr13
6	Bonnet	Ductile Iron GGG50
7	Sealing ring	Brass
8	Anti-dust cap	EPDM/NBR
9	Seal O-ring	EPDM/NBR
10	Stem O-ring	EPDM/NBR
11	Bolts	Carbon Steel
12	Gasket	EPDM/NBR

Size	G	D	L	H	L1	Torque N.m	W.T(kg )
Size	G	D	L	H	L1	Torque N.m	W.T(kg )
DN15	1/2”	40	95	145	16	20	2.1
DN20	3/4”	40	95	145	16	20	2.1
DN25	1”	47	105	145	16	25	2.1
DN32	1 1/4”	58	120	149	16	32	2.8
DN40	1 1/2”	62	130	172	18	40	3.1
DN50	2”	76	150	190	18	50	5.3
