BS5163/EN1171 PN10/16 Rising Stem Resilient Seat Gate Valve-780

BS5163/EN1171 PN10/16 Rising Stem Resilient Seat Gate Valve

Features：
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 250 Micron thick
Working pressure :16Bar
working temperature from -10 to +80 ºC

Inquire Now Add To Cart
share:
Product Details

Technical Specification：
Valve design according to EN1171,BS5163,EN1074-1 and 2
Face to face: BS5163,EN551-1 Series 13
Hydraulic test according to EN 12266、ISO5208
Standard Flange drilling according to EN1092-2,ISO7005-2

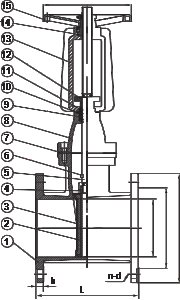

Item No.Part NameSpecification
1BodyDuctile Iron EN- GJS- 500- 7
2WedgeDuctile Iron EN- GJS- 500- 7
3Wedge CoatingNBR /EPDM EN 681-1
4Wedge NutCopper Alloy
5StemStainless Steel X20 Cr13
6O Ring Back SealingEPDM/NBR
7Bonnet GasketNBR /EPDM EN 681-1
8BonnetDuctile Iron EN- GJS- 500- 7
9Packing CorkCopper Alloy
10O-RingEPDM/NBR
11Parking O-RingEPDM/NBR
12Gland FlangeDuctile Iron EN- GJS- 500- 7
13YokeDuctile Iron EN- GJS- 500- 7
14Stem NutCopper Alloy
15HandWheelDuctile Iron EN- GJS- 500- 7

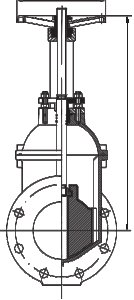

SizeLDbEN 1092-2 PN10EN 1092-2 PN16H(Open)WW.T(kg )
D1D2n-dD1D2n-d
DN4016515019110844*19110844*1924018012
DN5017816519125994*19125994*1925018013.5
DN65190185191451184*191451184*1926518018
DN80203200191601328*191601328*1930020022
DN100229220191801568*191801568*1935020029
DN125254250192101848*192101848*1941025038.5
DN150267285192402118*232402118*23450280410
DN200292340202952668*2329526612*2355032076
DN2503304002235031912*2335531912*28650350114
DN30035645524.540037012*2341037012*28710380162
DN35038152026.546042916*2347042916*28762450260
DN4004065802851548016*2852548016*31836450339
