AWWA C509/C515 250PSI NON-Rising Stem Resilient Seat Gate Valve-783

AWWA C509/C515 250PSI NON-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

Inquire Now Add To Cart
share:
Product Details

Technical Specification：
Valve design according to AWWA C515、AWWA C509 Face to face dimensions according to ANSI B16.10
Hydraulic test according to AWWA C515、AWWA C509、ISO5208 Standard flange drilling to ANSI B16.1、ANSI B16.42

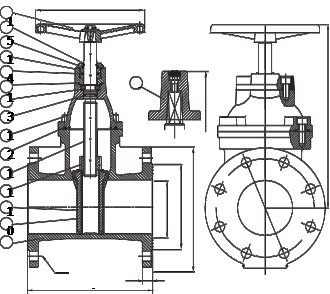

Item No.Part NameSpecification
1BodyDuctile Iron ASTM A536 65-45-12
2WedgeDuctile Iron ASTM A536 65-45-12
3Wedge CoatingEPDM/NBR ASTM D2000
4Wedge NutCopper Alloy
5StemStainless Steel ASTM A276 SS410
6Bonnet GasketEPDM ASTM D2000
7BonnetDuctile Iron ASTM A536 65-45-12
8O Ring Back SealingEPDM ASTM D2000
9Stem WasherPEFE
10O-RingEPDM ASTM D2000
11O-RingEPDM ASTM D2000
12Gland FlangeDuctile Iron ASTM A536 65-45-12
13Dust GuardEPDM ASTM D2000
14HandWheelDuctile Iron ASTM A536 65-45-12
15Stem CapDuctile Iron ASTM A536 65-45-12
SizeLDD1bn-d1HH1WW.T(kg )
1 1/2"16512798.514.24*1625028018010.5
2"178152120.715.84*1925528518011.5
2 1/2"191178139.717.54*1928031018015
3"203191152.4194*1930033020019
4"229229190.523.98*1934437423028.5
5"254254215.923.98*2241044025036.5
6"267279241.325.48*2244147128040
8"292343298.528.58*2252955932074.5
10"33040636230.212*25614644360109
12"356483431.831.812*25700730500159
14"381533476.33512*29880910500242.5
16"406597539.836.616*299901020500315.5
18"432635577.939.616*3211201150500441.5
20"45769963542.920*3212201250500529
24"508813749.347.820*3513701400500725
