AWWA C509/C515 250PSI Rising Stem Resilient Seat Gate Valve-788

AWWA C509/C515 250PSI Rising Stem Resilient Seat Gate Valve

Features：
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

Inquire Now Add To Cart
share:
Product Details

Technical Specification：
Valve design according to AWWA C515、AWWA C509 Face to face dimensions according to ANSI B16.10
Hydraulic test according to AWWA C515、AWWA C509、ISO5208 Standard flange drilling to ANSI B16.1、ANSI B16.42

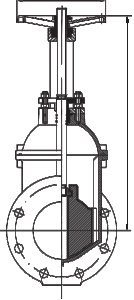

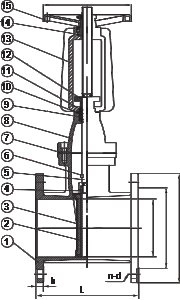

Item No.Part NameSpecification
1BodyDuctile Iron ASTM A536 65-45-12
2WedgeDuctile Iron ASTM A536 65-45-12
3Wedge CoatingE EPDM ASTM D2000
4Wedge NutCopper Alloy
5StemStainless Steel X20 Cr13
6O Ring Back SealingEPDM ASTM D2000
7Bonnet GasketEPDM ASTM D2000
8BonnetDuctile Iron ASTM A536 65-45-12
9Packing CorkCopper Alloy
10O-RingEPDM ASTM D2000
11Parking O-RingEPDM ASTM D2000
12Gland FlangeDuctile Iron ASTM A536 65-45-12
13YokeDuctile Iron ASTM A536 65-45-12
14Stem NutCopper Alloy
15HandWheelDuctile Iron ASTM A536 65-45-12
SizeLDD1bn-d1H(open)WW.T(kg )
1 1/2"16512798.514.24*1625018013
2"178152120.715.84*1925518014
2 1/2"191178139.717.54*1928018016
3"203191152.4194*1930020023
4"229229190.523.98*1934423028
5"254254215.923.98*2241025037
6"267279241.325.48*2244128052
8"292343298.528.58*2252932077
10"33040636230.212*25614360127
12"356483431.831.812*25700500176
14"381533476.33512*29880500322
16"406597539.836.616*29990500432
18"432635577.939.616*321120500542
20"45769963542.920*321220500695
24"508813749.347.820*351370500845
