Non-rising Resilient Seat Socket end Gate Valve for DI Pipe

Features：
Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

Non-rising Resilient Seat Socket end Gate Valve for PE Pipe

Features：
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

PVC Socket Ends Non-rising Resilient Seat Gate Valve

Features：
Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

AWWA C509/C515 250PSI Rising Stem Resilient Seat Gate Valve

Features：
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

AWWA C509/C515 250PSI NON-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure 250 PSI/17.2 Bar Non-Shock Cold

BS5163/EN1171 PN10/16 Rising Stem Resilient Seat Gate Valve

Features：
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 250 Micron thick
Working pressure :16Bar
working temperature from -10 to +80 ºC

BS5163&BS664/665 Non-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge
Brass Wedge Nut
Surface Treatment: RAL 5017 FBE coated inside and outside with thickness no less than 250microns
Working pressure 16 Bar
working temperature from -10 to +80 ºC

DIN3352 F4/F5 DN350-DN1600 Non-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge
Brass Wedge Nut

Surface Treatment: RAL 5017 FBE coated inside and outside with thickness no less than 250microns
Working pressure 16 Bar
working temperature from -10 to +80 ºC

DIN3352 F5/EN1171 PN10/PN16 Non-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge
Brass Wedge Nut

Surface Treatment: RAL 5017 FBE coated inside and outside with thickness no less than 250microns
Working pressure 16 Bar
working temperature from -10 to +80 ºC

DIN3352 F4/EN1171 PN10/PN16 Non-Rising Stem Resilient Seat Gate Valve

Features：
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge
Brass Wedge Nut
Surface Treatment: RAL 5017 FBE coated inside and outside with thickness no less than 250microns
Working pressure 16 Bar
working temperature from -10 to +80 ºC

RG04-F4-NRS Gland Type DIN3352 / EN 1171 Resilient Seated Gate Valve Gland Type

Technical Specification:

Size: DN50-DN600

Pressure: EN 1171

Valve design according to EN 1171、DIN3352、EN 1074-1 and 2

Face to face dimensions according to EN 558-1 Series 14/15、DIN3202 F4/F5

Standard flange drilling to EN 1092-2、ISO 7005-2

Hydraulic test according to EN 12266、ISO5208

RG05-F4-NRS DIN3352 / EN 1171 Resilient Seated Gate Valve

Technical Specification:

Size: DN50-DN300

Pressure: EN 1171

Valve design according to EN 1171、DIN3352、EN 1074-1 and 2

Face to face dimensions according to EN 558-1 Series 14/15、 DIN3202 F4/F5

Standard flange drilling to EN 1092-2、ISO 7005-2

Hydraulic test according to EN 12266、ISO5208

RG11-PE pipe Socket Ends PE Socket Ends Non-rising Resilient Seat Gate Valve

Technical Specification:

Size: DN50-DN300

Pressure:PE Socket

Valve design according to DIN 3352 / SABS 664

Face to face dimensions according to DIN 3202 F5/ SABS 664

Socket Ends dimensions comply ISO 4422 、 ISO 4422.2

Hydraulic test according to ISO5208

RG12-Socket End for DI pipe Socket Ends Non-rising Resilient Seat Gate Valve for DI Pipe

Technical Specification：

Size: DN50-DN300

Pressure:Socket

Valve design according to DIN 3352 / SABS 664

Face to face dimensions according to DIN 3202 F5/ SABS 664

Socket Ends dimensions comply ISO 4422 、 ISO 4422.2

Hydraulic test according to ISO5208

RG 13-Thread End DIN3352 Thread End Resilient Seat Gate Valve

Technical Specification:

Size: DN15-DN50

Pressure:Thread

Design:DIN3352

Thread End Connection: NPT,BSPT

Hydraulic test: EN12266；ISO 5208

Seat Test:17.6bar

Shell Test:24bar

RG 14-Thread End Angle type DIN3352 Thread End Resilient Seat Gate Valve

Technical Specification:

Size: DN1”-DN2”

Pressure:Thread

Design:DIN3352

Thread End Connection: NPT,BSPT

Hydraulic test: EN12266；ISO 5208

Seat Test:17.6bar

Shell Test:24bar

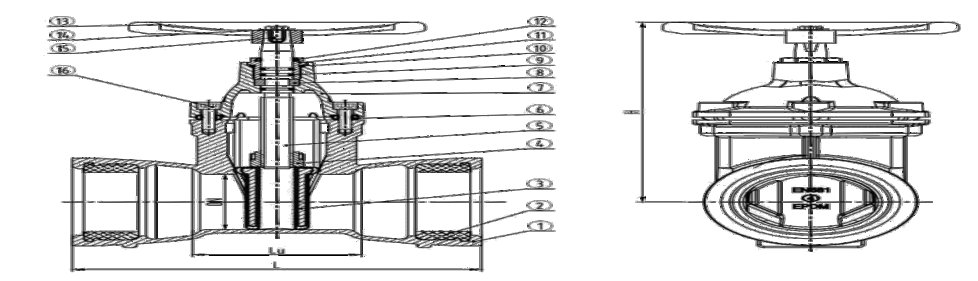

Item No.	Part Name	Specification
1	Body	Ductile Iron GGG50
2	T type Socket Gasket	EPDM
3	Wedge	GGG50+EPDM
4	Stem Nut	Brass
5	Stem	SS420
6	Gasket	EPDM
7	Bonnet	Ductile Iron GGG50
8	Stopper	Brass
9	O-Ring	EPDM/NBR
10	O-Ring	EPDM/NBR
11	Stuffing Nut	Copper Alloy
12	Anti-dust ring	EPDM
13	Hand Wheel	Ductile Iron GGG50
14	Washer	Carbon Steel
15	Bolts	Carbon Steel
16	Bolts	Carbon Steel

Size		Lu	L	H	W
	PIPE OD
	EN545/EN598
DN50	66mm	77	250	280	180
DN65	82mm	80	265	295	180
DN80	98mm	84	300	330	200
DN100	118mm	88	350	380	220
DN125	144mm	91	410	440	220
DN150	170mm	94	450	480	250
DN200	222mm	100	550	580	280
DN250	274mm	100	550	580	280
DN300	326mm	125	650	680	320
